DT7550.89: Indicator Panel LCD, Mute, Reset, 8-Zone, Standard, Stainless

To improve customer experience and monitor performance, this website uses Folknoll Group and third‑party cookies. By continuing to use this website, you accept this practice.

Features

  • Vandal resistant monitoring for up to 8 emergency assistance alarms
  • Reset function not compatible with BS 8300‑2 emergency assistance alarms
  • 16‑character LCD display
  • Global alarm output for use with external equipment
  • Vandal resistant, keyed reset switch (prevents unauthorised use)
  • Large, vandal resistant, mute button (keyed switches and other buttons available)
  • Loud, integral sounder to alert staff to alarm activation (protected by grid)
  • Usually powered directly from a battery backed, system PSU
  • Tough, vandal resistant, brushed finish, stainless steel plate
  • Black silk screened annotation
  • Mild steel, flush or surface back box, please specify when ordering
  • Anti‑tamper fixings available on request
  • Ideal for public spaces

Our Disabled Toilet Alarm Range

Our vandal resistant disabled toilet alarm range offers tough, cost‑effective, assistance alarm systems for public use. We supply stand‑alone toilet alarms, multiple toilet systems with remote monitoring and combined systems with disabled refuge EVCS, fire telephone, building alarms, etc. Interfaces for BMS and transmission over IP are also available. IDEAL FOR SHOPS, OFFICES, HOTELS, FACTORIES AND SIMILAR LOCATIONS.

Indicator Panel LCD, Mute, Reset, 8-Zone, Standard, Stainless

One or more LCD panels can be installed in central monitoring station(s) or control room(s) to attract the attention of system operators in the event of alarm activation.

Panels can be daisy chained to provide alarm indication at multiple locations. Panels have an alarm output for use with additional equipment, e.g. beacons, sounders or monitoring systems.

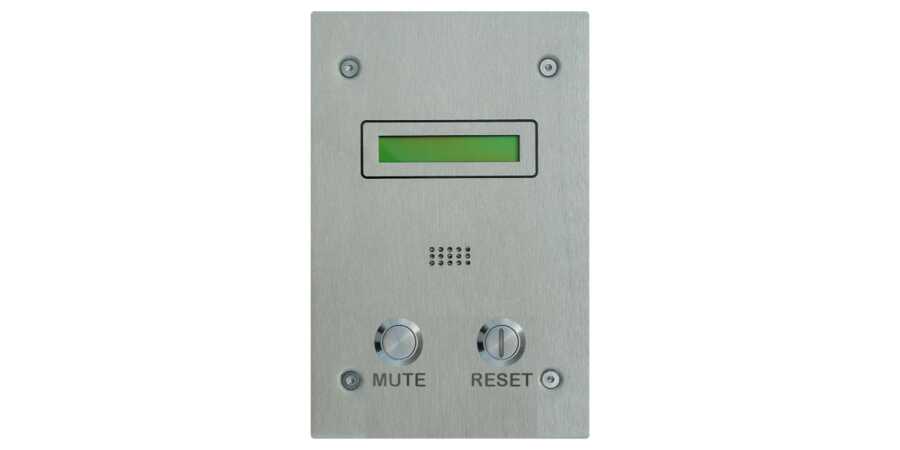

LCD indicator panels comprise a stainless steel plate fitted with a 16‑character LCD display, an integral sounder, a mute button and keyed reset. The MUTE button and keyed RESET are annotated in black with the words MUTE and RESET. Alternative annotation is available on request. Remote indicator panels can be supplied with flush or surface mount back boxes.

Special keyed reset switch allows authorised staff to reset remote alarms. This feature is not not compatible with BS 8300‑2 emergency assistance alarm systems.

Specifications


Display
16‑Character LCD
Reset switch
Vandal resistant, keyed switch (other switches and buttons on request)
Mute button
Large, vandal resistant, push button (other buttons on request)
Audio alert sounder
Internal buzzer, 400±100Hz, 75dB at 300mm
Input voltage
12Vdc and 24Vdc variants available (please specify when ordering)
Front plate
Stainless steel (304/1.4301), 1.6mm, brushed finish (other finishes on request)
Annotation
Black, silk screened (other options on request)
Plate dimensions
Width: 130mm, height: 190mm, depth: < 50mm (approx.)
Flush back box
Mild steel, galvanised, width: 115mm, height: 175mm, depth: 50mm (approx.)
Surface back box
Mild steel, black painted, width: 130mm, height: 194mm, depth: 55mm (approx.)
