DT7540.00ETB: Reset Enhanced, Single, Composite, Brushed, Braille, Tactile

To improve customer experience and monitor performance, this website uses Folknoll Group and third‑party cookies. By continuing to use this website, you accept this practice.

Features

  • Steel Backed Acrylic, reset button unit with enhanced alarm controller
  • BS 8300-2 compatible black tactile and Braille text
  • Designed for public use, emergency assistance alarm systems
  • Illuminated reset button and internal buzzer, indicates local alarm state to reassure users.
  • Outputs for external beacons and sounders
  • Inputs for pull cords, acknowledge buttons and additional reset buttons
  • Input delay to reduce accidental false button presses
  • Integral cable fault monitoring
  • BS 8300-2 compatible timed acknowledge function
  • Compatible with Folknoll RS485, SNI and NIOS remote monitoring systems
  • Mounts in a standard UK, 35mm, single gang back box.
  • Anti‑tamper fixings are available, please contact us for details

Similar Products

Our Disabled Toilet Alarm Range

Our vandal resistant emergency assistance alarm range offers tough, cost‑effective, BS 8300‑2 and document M compatible systems suitable for public use. We supply stand‑alone alarms, multiple alarm systems with remote monitoring and combined systems with disabled refuge EVCS, building alarms, etc. For larger and smarter sites, we offer networked solutions with optional BMS interfaces. Ideal for hospitals, railway stations, hotels, airports and other public spaces.

Enhanced Reset Units

Our enhanced emergency assistance alarm reset units are local alarm controllers with integral reset buttons. These units continually monitor pull cords, call points, etc. and activate beacon sounders and other indicators when an alarm is triggered. The reset button is used to reset (or cancel) the alarm after an incident has been resolved. Enhanced resets have an additional BS 8300-2 compatible timed acknowledge function to reassure users and facilitate audible communication. Reset units are usually installed inside an alarm zone to allow users to cancel the alarm and to ensure alarm responders visit the location in response to an alarm.

Compliant emergency assistance alarms cannot be reset remotely.

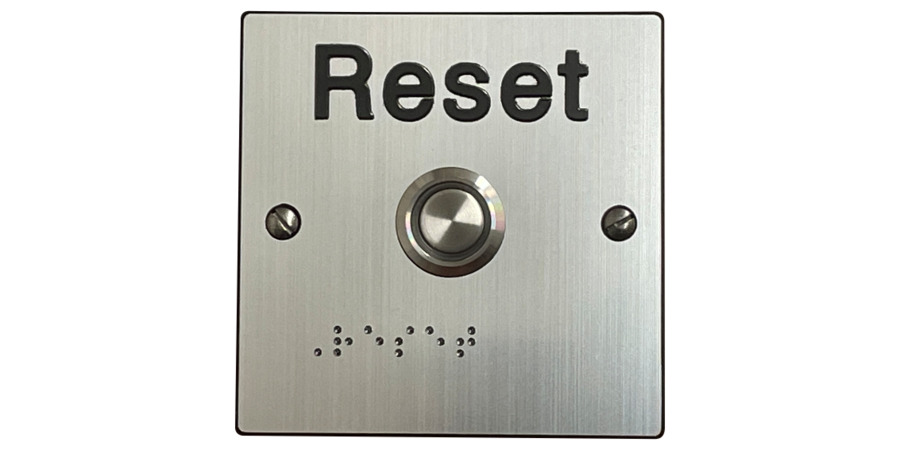

The DT7540.00ETB, Reset Enhanced, Single, Composite, Brushed, Braille, Tactile, Black

This unit is a combined enhanced alarm controller with a single illuminated reset button and internal buzzer. The button illumination and internal sounder mimic the operation of the overdoor beacon/sounder to provide audible and visual alarm state reassurance indication to the user.

The main PCB has screw terminals for easy cable connection and the entire assembly mounts in a standard UK, 35mm, single gang back box. Anti‑tamper fixings are available on request.

The front panel is made from acrylic backed steel, annotated with the word Reset in black tactile lettering and Braille. Other finishes and alternative annotation are available on request.

For other applications we offer a range of alternative reset units with integral alarm‑strip controllers, telephone interfaces, etc.

Specifications


Faceplate
Steel backed acrylic panel, black tactile and Braille annotation
Mounting
Standard UK, 35mm, single gang back box (not supplied)
Dimensions
Width: 86mm, height: 86mm, depth: <35mm (approx.)
Power
12Vdc / 24Vdc

Suitable for
