RA7700.30/35: Outstation, Standard, Vandal Resistant, Progress LED, Stainless

To improve customer experience and monitor performance, this website uses Folknoll Group and third‑party cookies. By continuing to use this website, you accept this practice.

Features

  • Vandal resistant, outstation for tough locations
  • Integral speaker and microphone, high audio output
  • Large vandal‑resistant call button with integral reassurance LED (indicates call progress)
  • Usually line powered from a Folknoll standard EVCS controller or a Folknoll compact EVCS master
  • Tough vandal‑resistant brushed‑finish stainless‑steel plate
  • Black silk screened annotation
  • Mild steel, flush or surface back box, please specify when ordering
  • Anti‑tamper fixings available on request
  • Compatible with Folknoll standard, compact and combined disabled refuge EVCS

Our Disabled Refuge EVCS Range

Elevate your building's safety and accessibility with Folknoll's market‑leading, cost‑effective disabled refuge emergency voice communication system (EVCS). Fully compatible with BS 5839‑9, our rugged, feature rich solutions deliver crystal‑clear voice communications and rock‑solid reliability.

Outstation, Standard, Vandal Resistant, Progress LED, Stainless

Disabled refuge outstations are installed in refuge areas to enable users to call for assistance in the event of an emergency.

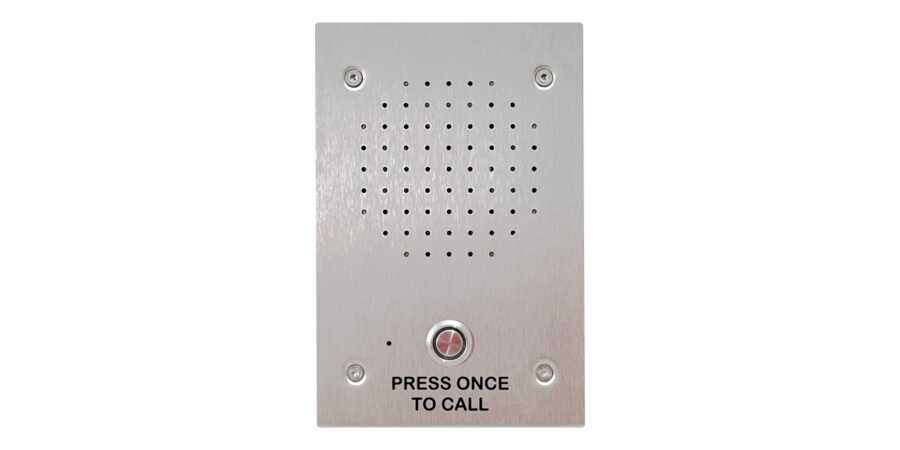

The RA7700.30 outstation is a single button, vandal resistant, refuge outstation with a stainless steel panel and mild steel painted back box. The unit has an integral microphone and speaker and is fitted with large vandal resistant call button and call progress LED. The speaker and microphone volume are adjustable to suit the operating environment with a maximum output of 80dB for noisy areas.

The standard unit is annotated in black with the words PRESS ONCE TO CALL. Alternative annotation is available on request.

The unit can be supplied with a surface or flush mount back box.

This outstation is suitable for use with our standard, compact and combined disabled refuge EVCS.

Specifications


Microphone
Internal
Speaker
Internal
Audio output
Adjustable (max: 80dB)
Call button / indicator
Large vandal‑resistant, push button with red indicator LED (other colours on request)
Input voltage
24Vdc (usually line powered by control system)
Front plate
Stainless steel (304/1.4301), brushed‑finish (other finishes on request)
Annotation
Silk screened, black (other options on request)
Plate dimensions
Width: 130mm, height: 190mm, depth: < 50mm (approx.)
Flush back box
Mild steel, galvanised, width: 115mm, height: 175mm, depth: 50mm (approx.)
Surface back box
Mild steel, black painted, width: 130mm, height: 194mm, depth: 55mm (approx.)
