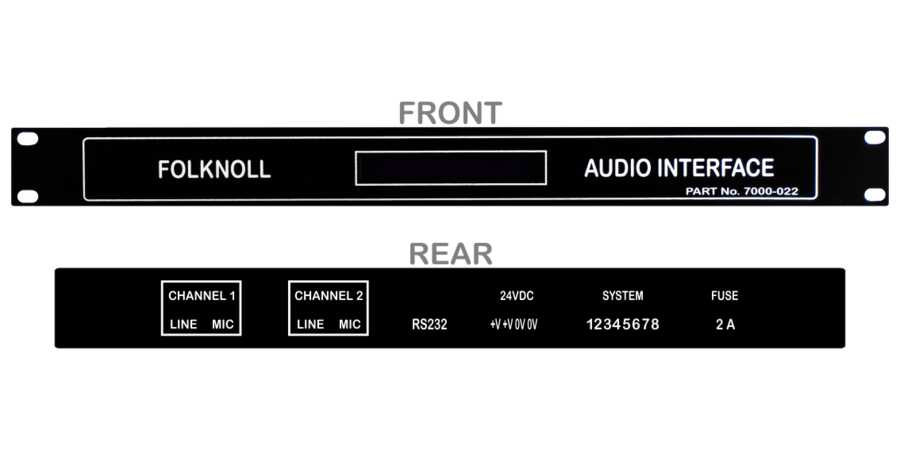

VC 7000-022: Module Audio Interface, Rack‑Mount, Steel Black

To improve customer experience and monitor performance, this website uses Folknoll Group and third‑party cookies. By continuing to use this website, you accept this practice.

Features

  • Rack mount videcom audio interface
  • RS232 control interface
  • Bi‑directional audio and control interface for CODECs
  • Powered from rack mount, battery backed, system PSU
  • Black painted, mild steel construction
  • White silk screened annotation
  • 19‑inch, rack mount enclosure
  • Required for videcom systems with PC master stations

Our Videcom Range

Our Videcom series is a range of easy to install, easy to operate audio/video equipment, enabling you to install tough, reliable, vandal resistant intercom and video intercom systems.

Module Audio Interface, Rack‑Mount, Steel Black

The VC 7000‑022 Audio Interface provides a control and audio interface between the A/V matrix and CODEC PCs.

The CODEC PC provides control, video and audio interfaces between the videcom system and an IP network allowing PC Master Station operators to see, hear, talk to users and control videcom systems.

Audio Interface and CODEC(s) are required for videcom systems with PC master stations.

Specifications


Accessible fuse
Yes
Videcom bus
Standard Folknoll videcom bus connector
Audio in
2‑off 3.5mm jack sockets (stereo wired as mono)
Audio out
2‑off 3.5mm jack sockets (stereo wired as mono)
RS232 control
9‑way D‑type socket
Input voltage
24Vdc (use standard Folknoll PSU P/Nos 240‑15‑24 or 240‑20‑24)
Construction
Mild steel, painted finish, black
Annotation
White, silk screened (other options on request)
Enclosure
19‑inch rack mount, height: 1U, depth: 180mm (approx.)

Suitable for
