SDD 9001-003: Intelligent Test Box

To improve customer experience and monitor performance, this website uses Folknoll Group and third‑party cookies. By continuing to use this website, you accept this practice.

Features

  • Cable terminal box for security system multi‑core cable
  • Status indicator LEDs for easy maintenance
  • Connection for Portable Engineer's Terminal
  • Can be fitted to compliant third‑party door drives

Our Sliding Door Drives Range

The Folknoll Electric Pedestrian Sliding Door Drive has been designed for use in HM Prison Service and similar institutions. The drive is fully compliant with Home Office specifications and is compatible with SMS and locking control systems. The drive is intended as a ’safer’ alternative to traditional hydraulic powered doors for new and existing installations.

Intelligent Test Box

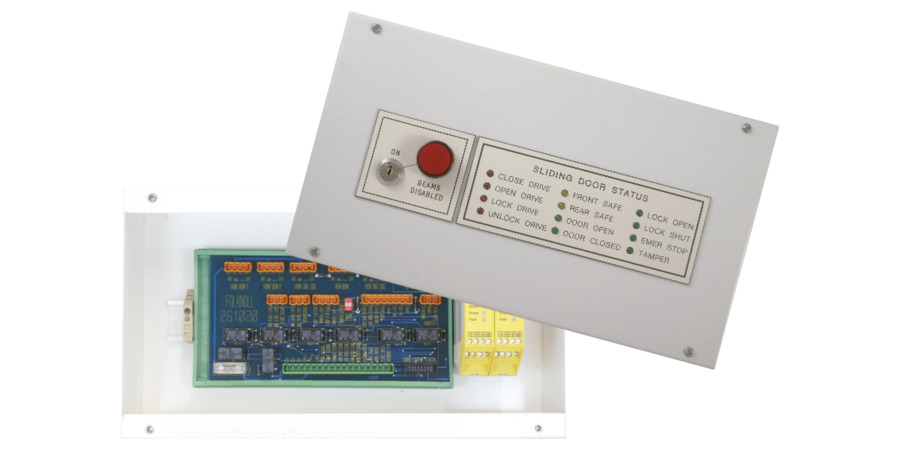

INTELLIGENT TEST BOX
The Intelligent Test Box provides cable termination, status indication and Portable Engineer’s Terminal connection for compliant electric pedestrian sliding door drives. This unit is supplied as standard in our MK II electric pedestrian sliding door drive.

CABLE TERMINATION
The enclosure acts as a junction box connecting the multi‑core security system control cable to the drive control cables. The multi‑core cable is terminated directly in the Intelligent Test Box, no need for additional terminals, breakout cables, etc. reducing the risk of cabling faults and system downtime.

STATUS INDICATOR LEDS
The lid is fitted with 12 LEDs indicating the current status of sensors and drives. The status information helps maintenance engineers provide quick, easy, accurate, fault diagnosis, reducing system downtime and maintenance costs.

PORTABLE ENGINEER’S TERMINAL INTERFACE
The Box also offers a connection point for a Portable Engineer’s Sliding Door Terminal. Connecting a Portable Engineer’s Terminal isolates the security control system and provides local control of the sliding door drive. For health and safety reasons Folknoll recommend the use of a Portable Engineer’s Terminal during installation, commissioning, testing, maintenance, etc.

UPGRADE THIRD‑PARTY DRIVES
Our Intelligent Test Box is compatible with most compliant third‑party door drives and can be used to add status indication and a Portable Engineer’s Sliding Door Terminal connection point to existing door drives.

Specifications


Front panel
Steel, white painted finish, black annotation
Mounting
Custom surface mount back box or retrofit to existing Folknoll back box
Dimensions (lid for retrofit)
Width: 350mm, height: 198mm, depth: 30mm (approx.)
Dimensions (back box)
Width: 350mm, height: 198mm, depth: 100mm (approx.)
Dimensions (assembly)
Width: 350mm, height: 198mm, depth: 130mm (approx.)
